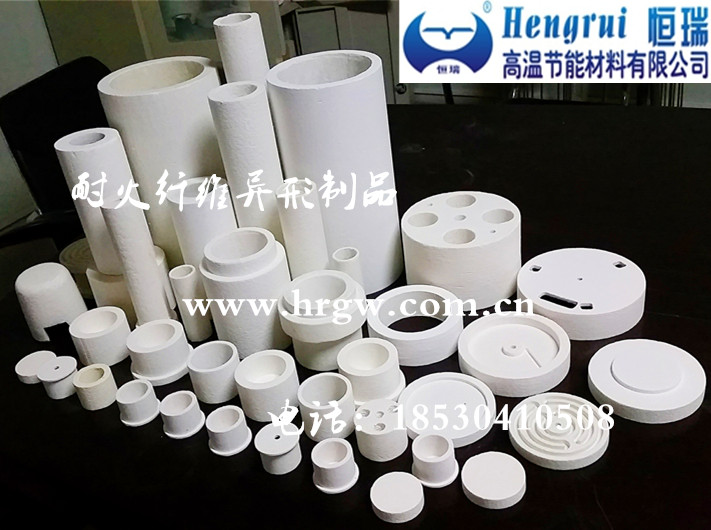

Hengrui Ceramic Fiber Vacuum Formed Shapes

发布者:恒瑞高温


Products Introduction

Hengrui Ceramic Fiber Vacuum Formed Shapes are made of high-quality ceramic fiber cotton by adopting the technique of vacuum forming. The purpose of making these products is to meet the special requirements of insulation in industrial field. Various products need to have specialized molds according to their unique shape and size for meeting customers’ requirements. All Vacuum formed shapes have a lower shrinkage within applicable temperature, and can maintain the characteristics such as insulation, lightweight, etc. During the period of using the products, they won’t be eroded by lots of molten metal.

Products Features

u Tenacious texture, and strong anti-wind erosion.

u Excellent thermal shock resistance.

u Low thermal conductivity and heat capacity.

u Long service life and high compression strength.

u Prominent effect of sound-absorption.

u Easy to install and construct.

Products Applications

Observation of industrial furnace.Industrial furnace burner, door.

Plug and launder of Aluminum Products Industry.

Lining refractory of high-temperature laboratory furnace.

Thermal insulation of domestic and industrial heating devices

Non-ferrous metal melting tank padded, casting riser.

Roller furnace insulation bricks

Physical Properties

Ceramic Fiber Vacuum Formed Shapes

HR 1260ST

HR 1350HA

HR 1430Zr

HR 1600PMF

Classification Temperature ()

1260

1350

1430

1600

Density (kg/m³)

250-550

250-550

250-550

400-600

Liner Shrinkage (%) at()*24h

1.3 (900)

1.5 (1100)

1.6 (1200)

1.2 (1450)

Tensile Strength (Mpa)

0.7

0.7

0.7

0.6



Thermal Conductivity

(w/m.k)

400()

0.07

0.08

-

-

600()

0.12

0.13

0.09

-

800()

0.18

0.16

0.13

-

1000()

-

-

0.18

0.12

Packing Manner

carton or wooden.

Standard Size

Processing with samples or drawings.

u Notes: The result is average value not guarantee value,fluctuate within the standard value, for more details about our products properties or technical support, please contact Hengrui Technical Department .
